CM-200S Digital Color Meter 45°/0° Viewing Geometry D65 Light Source for Color Measuring

Delivery Time : 5-10 working days

Application : Color Measuring

Viewing Geometry : 45°/0°

Certification : CE,ROHS

Supply Ability : 1000pcs/month

Brand Name : Bestone

Model Number : CM-200S

Place of Origin : CHINA

Price : negotiable

Packaging Details : plastic carrying case and white paper box

Storage : 99 Set

MOQ : 2

Light Source : D65

Payment Terms : T/T

Contact Now

CM-200S Digital Color Meter Colorimeter
Application
The CM-200S is an extremely compact, easy-to-use tristimulus colorimeter specifically designed for measuring color differences between two colors. This instrument is ideal for measuring the color of non-lighting and non-fluorescent samples including textiles, paper, leather, and painting materials. It serves as an essential tool for quality control and wide industrial applications.
Key Features
  • Color difference display in multiple formats: (L*, a*, b*), (E*ab, C*ab, H*ab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)
  • Color space display options: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)
  • Advanced statistical functions including Maximum, Minimum, Average and Standard Deviation
  • Color difference tolerance settings for PASS/WARN/FAIL evaluation
  • Storage capacity for 9 color-difference target colors
  • User calibration function for enhanced accuracy
  • Auto memory function with 99 data sets and read capability
  • Digital backlight display for clear visibility
  • Auto power off function (approximately 3 minutes)
  • USB and Bluetooth data output connectivity
  • PC connectivity via USB data output
  • Optional Bluetooth data output capability
Technical Specifications
Display Triple 4 digit LCD Display
Auto Power Off Approximately 3 minutes
Data Memory Capacity 99 sets (Direct reading from LCD display)
Low Battery Indication ✓ Included
Illuminating/Viewing Geometry 45°/0°: Illumination at 45°, measurement at 0°
Measuring Range L*: 5 to 100
Measurement Conditions Observer: CIE 2° Standard Observer
Illuminant White LED lamp
Repeatability Standard deviation within E*ab 0.5 (Average of measurements of standard white plate)
Minimum Interval Between Measurements Approximately 2 seconds
Operating Temperature & Humidity 0~40°C (32~104°F), < 85% RH
Storage Temperature & Humidity -10~40°C (14~104°F), < 70% RH
Power Source 4 x 1.5 AAA (UM-4) Batteries
Dimensions 140 x 73 x 35mm (5.5 x 2.9 x 1.4 inches)
Weight (Without Batteries) Approximately 220g
Standard Accessories

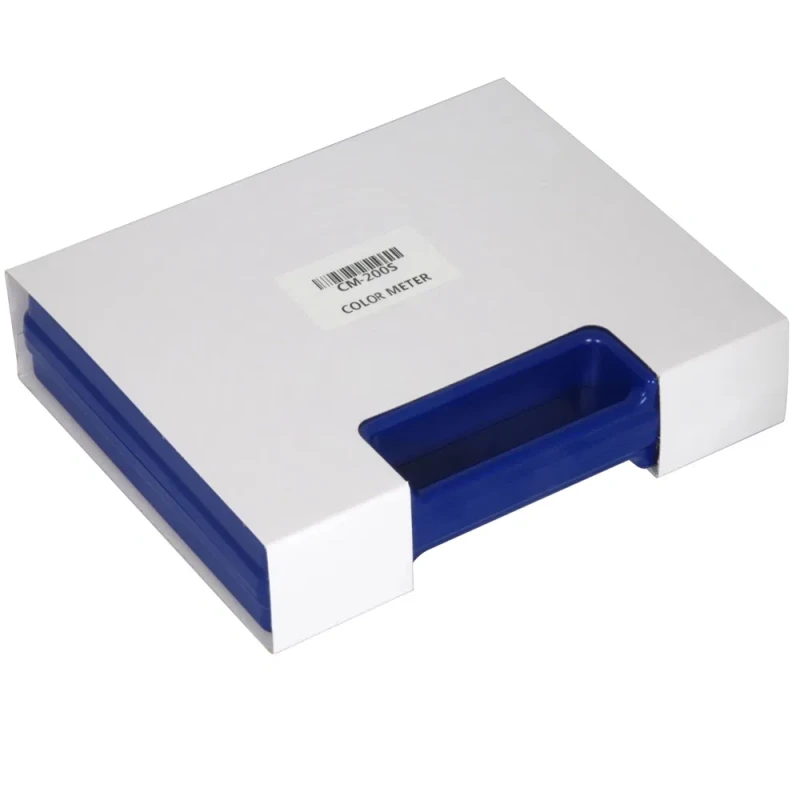

Main Unit, Measuring Head, White Calibration Card, Carrying Case (B04), Manual
Optional Accessories
USB Data Cable with Software, Bluetooth Data Adapter with Software
